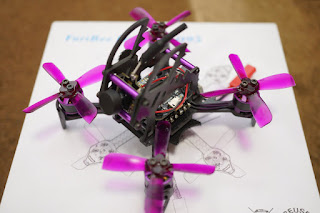

banggoodでは約170ドルで販売予定。
 |
| 中央の樹脂（ゴム？）の中にジャイロが封入されており、フレキで接続されている。 このため、モーターやフレームの振動が直接ジャイロに印加されない。 |
主要スペック
- F4フライトコントローラー
- 28A（ピーク35A）、5S対応の4-in-1 ESC
- 720p DVR付き
- 4Sバッテリー対応、4S 550mahバッテリーが付属
- ガード付きショートクローバーリーフアンテナを装備
詳細
Specifications:
- Brand Name: Eachine
- Item Name: Lizard 105S Micro FPV RACING DRONES BNF
- Size:130mm*130mm*53mm
- Weight: 80g( battery not include)
- Flight controller: F4 Flight controller built-in OSD with Damping box IMU
- Motor: Eachine 1104 KV6000 brushless motor
- ESC:BS-28A 4IN1 ESC DSHOT600 Ready
- Propeller: 60mm 4-blades propeller
- Camera: 130Degree 720P Camera
- DVR: 1280*720 Real HD Video recorder
- VTX: 5.8g 25MW/200MW Switchable 48CH Video transmitter
- Battery: 14.8V 550mah 60C lipo battery
- OSD: Betaflight OSD
- Firmware of Flight controller :Betaflight 3.2
- Rear LED Ready( LED_Strip function)
- Buzzer Ready
Receiver Option:
- Compatible Frsky XM+ Receiver with Telemetry
- Compatible Flysky 10ch AFHDS2A receiver Ibus output with Telemetry
- Compatible Specktrum DSM2/DSMX Compatible receiver
Flight controller Specification:
- -Size:27mm*27mm*8mm
- -Mount hole: 20mm*20mm
- -Processor: STM32F405RGT6
- -Sensor: SPI Sensor MPU6000 with Damping box mounted
- -Built-in Betaflight OSD ( Batt voltage, RSSI , Artificial HZ , Fly mode , -Flytime, Craft name etc.)
- -Firmware version: Betaflight 3.2
- -Target: Omnibus F4SD
- -Work voltage: 2S-4S lipo battery
ESC specification:
- -Size:27mm*27mm*5mm
- -Mount hole: 20mm*20mm
- -Firmware version: BLHELI_S 16.5
- - BB2, 48MHZ Chip
- -Lipo Battery: 2S-4S
- -Con. Current: 28A
- -Peak Current: 35A (5S)
- -Programming: YES
- -Betaflight pass-through ready
- -Dshot600 ready(Default)
DVR Specification:
- - Dimension: 27*27*3.5mm
- - Mount hole: 20mm*20mm
- - Records effective pixel :1280(H) x720(V) 60FPS
- - Output format: NTSC/PAL
- - ISO Sensitivity: Auto ISO
- - Video format: MOV(H.264)
- - Operating voltage: 5V
- - Standby current: 250-260mA @5v
- - Work current: 280-300mA @5v
- - Max Micro SD: 32GB ,FAT32
Camera Specification:
- Video Format: NTSC/PAL
- Image Resolution: 1280x720
- Sensor: 1/4 inch CMOS
- LENS ANGEL: H:130°/V:100°
- Supply Voltage:3.2v~5.5v
Features:
- - Extremely light and powerful, 4S power makes the Lizard 105s like a beast
- - STM32F405RGT6+ BLHELI_S ESC make your Operating feel more stability and silky
- - Adjustable Angle of Camera
- - Adjustable VTX Power 25mw/200mw
- - 720P extremely video experience
- - 5.8g video real-time transmitter
- - Jaw-dropping flight performance
- - Betaflight support
- - Acro mode / Air mode /Angle mode support
- - Built-in OSD(Using F4 MCU controls OSD over SPI bus in DMA mode)
- - OSD Configuration has been include in BETAFLIGHT GUI
- - Radio Stick to control PID Tunes
- - BLEHELI_S pass-through ready
- - Telemetry RSSI Output ready (XM+ and Flysky version)
Package include:
- 1 x Eachine Lizard 105S Frame kit
- 1 x Omnibus F4 Corner Nano flight controller build-in OSD
- 1 x Compatible Frsky XM+/DSMX/Flysky AFHDS2A Receiver(optional)
- 4 x Eachine 1104 6000KV brushless motor
- 1 x BS-28A 4IN1 ESC Dshot600 Ready
- 4 x 60mm 4-blades propeller CW
- 4 x 60mm 4-blades propeller CCW
- 1 x 720P HD CMOS 1/4 inch camera
- 1 x 720P DVR
- 1 x 5.8g 25MW/200MW Adjustable 48CH VTX
- 1 x UXII Antenna
- 1 x 14.8V 550mah 60C lipo battery
- 1 x WS2812 LED Board+Buzzer
- 4 x Propeller guarder
